CP65.XXKGDRAM L=500MM VEGA lever capacitive level switch CP64.UXFGARAMX
  • name
  • name
  • name

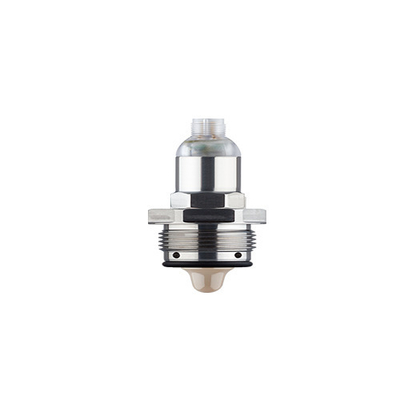

CP65.XXKGDRAM L=500MM VEGA lever capacitive level switch CP64.UXFGARAMX

MOQ: 1pcs
Price: Negotiable
Standard Packaging: Original packing
Delivery Period: On request
Payment Method: T/T
Supply Capacity: 50pcs/month
Details Information
Product Description
Detail Information
Place of Origin
DE
Brand Name
VEGA
Certification
Rohs
Model Number
CP65.XXKGDRAM
Ambient Temperature:
-40 °C...+280 °C
Net Weight:
8.1kg
Dimensions:
50 X 45 X 30
Maximum Current:
24 MA
Products Name:
Vibrating Level Switch
Threaded Connection:
≥ G½, NPT
Sil Qualification:
SIL2
Material:
Metal
Successor:
VEGABAR CP65
Address Setting:
No
Application Area:
Solids
Beam Angle:
≥ 3°
Resolution:
0.2 DB
Product Description

CP65.XXKGDRAM L=500MM VEGA lever capacitive level switch CP64.UXFGARAMX



Scope of application
For the detection of liquid or solid material point levels, the probe is up to 32 m long
The VEGACAP 65 is a level switch for all industrial sectors and is suitable for detecting the limit level of solids or liquids with a semi-insulated probe. The mechanical structure of the instrument is durable and ensures functional safety.
Your benefits
The measuring probe can be truncated for maximum flexibility
The mechanical structure is robust, the service life is long, and the maintenance is low
Large-size heavy hammer is used to ensure the safety and reliability of the switching point



Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 200 °C [°C - °F]
Process pressure
  • -1 ... 64 bar [Bar - kPa - psi]
Version
  • Cable ø 6 mm with screening tube without weight
  • Cable ø 6 mm with screening tube and gravity weight
  • Cable ø 6 mm with gravity weight
  • Cable ø 8 mm with abrasion protection without weight
  • Cable ø 8 mm with abrasion protection and gravity weight
  • Cable ø 8 mm with gravity weight
  • PA cable ø 12 mm with screening tube and gravity weight
Materials, wetted parts
  • PTFE
  • 316L
  • PA
  • PEEK
  • Steel
Threaded connection
  • ≥ G1, ≥ 1 NPT
Flange connection
  • ≥ DN50, ≥ 2"
Housing material
  • Plastic
  • Aluminium
  • Stainless steel (precision casting)
  • Stainless steel (electropolished)
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
Ambient temperature
  • -40 ... 80 °

CP65.XXKGDRAM L=500MM VEGA lever capacitive level switch CP64.UXFGARAMX 0

CP65.XXKGDRAM L=500MM VEGA lever capacitive level switch CP64.UXFGARAMX 1CP65.XXKGDRAM L=500MM VEGA lever capacitive level switch CP64.UXFGARAMX 2
