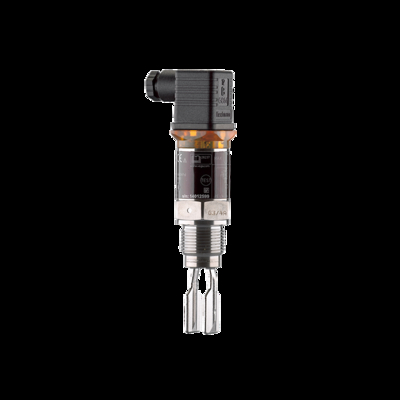

vega SG51.XXSGATPVL VEGASWING 51 Series Tuning Fork Level Switch, PNP Output,

MOQ:	1pcs
Price:	Negotiable
Standard Packaging:	Original packing
Delivery Period:	On request
Payment Method:	T/T
Supply Capacity:	50pcs/month

Details Information

Product Description

Detail Information

Place of Origin

Brand Name

Certification

Model Number

SG51.XXSGATPVL

Ambient Temperature:

-40 °C...+270 °C

Net Weight:

0.53kg

Dimensions:

25 X 15 X 30 Inches

Mode:

Overflow Protection

Maximum Current:

20 MA

Products Name:

Vibrating Level Switch

Threaded Connection:

≥ G½, ≥ ½ NPT

Sil Qualification:

Material:

Metal

Successor:

Address Setting:

Highlight:

VEGASWING 51 tuning fork level switch

PNP output level sensor

VEGA tuning fork level meter

Product Description

vega SG51.XXSGATPVL VEGASWING 51 Series Tuning Fork Level Switch, PNP Output,

Scope

Directly at the assembly position, it detects the limit level reliably and with millimetre precision. Small limit switch version with stainless steel housing.

The VEGASWING 51 is a universally applicable liquid level switch with the smallest dimensions. Regardless of the mounting position, it detects the point level reliably and with millimetre precision. The device can be used for full or empty detection, as an approved overfill protection or dry running or pump protection in tanks and pipelines. The VEGASWING 51 is an economical solution with the highest reliability and safety.

Specifications

Measuring Range - Distance

- [Meter - Foot]

Process Temperature

-40 ... 150 °C [°C - °F]

Process Pressure

-1 ... 64 bar [Bar - kPa - psi]

Execution

Standard
Extended temperature range
Hygiene applications

Wetted materials

316L

Threaded connection

≥ G1/2, ≥ 1/2 NPT

Hygienic connections

Clamp ≥ 1" - DIN32676, ISO2852
Pipe fitting ≥ DN25 - DIN 11851
ASEPT. Connection with groove union nut - F40
SMS DN38

Sealing material

No gasket that comes into contact with the media

Housing material

Plastic
Stainless steel

Protection

IP67
IP65
IP68 (0.2 bar)

Exit

contactless switch
Transistor (PNP)
IO-Link

Ambient temperature

-40 ... 70 °C

V1-W-S-BK2M-PUR-A-V1-G

FX81.ACETBKHXKMXX L=1560MM

PS60EE.60KH

FX-E.80ECH1

WE63.XXAGDRKMX length= 650mm

DTT31-A1C111AB2AAB

FX86.AX4VI1AXADAM
LENGTH=1880mm
Length of the reference distance= 500 mm / 19.69 in

SG66.AEKDNARANM

SG51.XXSGATPVL

DTT31L-A1C111AE2BN

FTL33-AA4U3BBWSJ

PCV-KBL-V19-STR-USB

NBB2-V3-E2-3G-3D

PLICSCOM.XW

SG51.XXTGHCPV
