AI-Tek 70085-1010-422 Speed Sensor RPM Probe with 12,000 RPM Range 316 Stainless Steel IP67 Rated Weatherproof
  • name
  • name
  • name

AI-Tek 70085-1010-422 Speed Sensor RPM Probe with 12,000 RPM Range 316 Stainless Steel IP67 Rated Weatherproof

MOQ: 1PC
Price: inquiry
Standard Packaging: CARTON
Delivery Period: Negotiable
Payment Method: T/T
Supply Capacity: 500+pcs+on stock
Details Information
Product Description
Detail Information
Place of Origin
USA
Brand Name
AI-Tek
Certification
ce
Model Number
70085-1010-422
Highlight:

12

,

000 RPM RPM Probe

,

316 Stainless Steel Speed Sensor

Product Description
AI-Tek Instruments 70085-1010-422 Speed Sensor
Part Number: 70085-1010-422
Type: Passive Magnetic Speed Sensor
Availability: In Stock • Ships Within 24 Hours
Technical Specifications
Output Signal AC Sine Wave
Peak-to-Peak Voltage 58 V (P-P)
Minimum Guaranteed Output 15 V (P-P)
DC Resistance 250 ohms maximum
Inductance 35 mH reference
Operating Temperature -65°F to +212°F (-54°C to +100°C)
Cable Length 12 feet (3.66 meters)
Connector Type IP67 Rated Weatherproof
Weight 0.45 kg (1 lb)
Performance Characteristics
Speed Range 0 to 12,000 RPM
Gap Range 0.010 to 0.080 inches (0.25 to 2.0 mm)
Frequency Response 0 to 2,500 Hz
Target Material Ferrous Metal Gear Teeth
Target Size Minimum 30 teeth
Physical Dimensions
Housing Material 316 Stainless Steel
Thread Size 3/4-16 UNF
Overall Length 4.25 inches (108 mm)
Sealing Double O-Ring Protection
Industrial Applications
  • Continuous monitoring of industrial pump speeds
  • Overspeed protection for turbine generators
  • Conveyor belt synchronization in manufacturing
  • Prevents catastrophic failure in mining equipment
  • Marine engine RPM monitoring systems
Installation Guidelines
  • Mount sensor perpendicular to gear rotation
  • Maintain air gap between 0.5-1.5mm from target
  • Secure with proper torque (25-30 ft-lbs)
  • Route cable away from high temperature sources
  • Connect directly to speed monitoring equipment

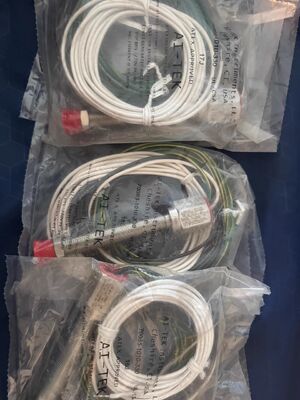

AI-Tek 70085-1010-422 Speed Sensor RPM Probe with 12,000 RPM Range 316 Stainless Steel IP67 Rated Weatherproof 0 AI-Tek 70085-1010-422 Speed Sensor RPM Probe with 12,000 RPM Range 316 Stainless Steel IP67 Rated Weatherproof 1
Shipping & Support
Availability In Stock
Lead Time Ships Within 24 Hours
Shipping Methods FedEx, UPS, DHL Express
Package Includes Sensor, Mounting Hardware, Documentation
Warranty 12 Months Limited
Support 24/7 Technical Assistance
Available Speed Probe Models
70085-1010-411
RH1612-025
T77530-10
70085-1010-420
70085-1010-330
70085-1010-412
70085-1010-328
70085-1010-416
70085-1010-329
70085-1010-028
70085-1010-404
70085-1010-214
70085-1010-422
70085-1010-220
70085-1010-001
70085-1010-005
70085-1010-018
70085-1010-405
70085-1010-081
CA79860-01-010
T77630-70
70085-1010-003
70085-1010-131
70085-1010-327
RH1522-005
70082-1000
70084-1000
H1320-001
H1512-001
BH1522-001
70085-8080-003
70085-1010-411
H1612-001
T77530-70
T77810-10
